JLupin disk queue implementation - shared storage

Overview

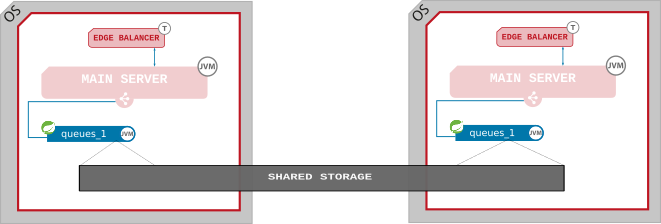

Figure 1. Shared storage queue.

Queues with persistance to disk can be configured as global queues. If so you must configure shared storage for them. Load balancers should be configured for all nodes communication - so they should use priority or round robin algorithms.

Usage

You must change configuration for calling microserivce, main server, queue microservice and microservice with service defintion.

Calling microservice

You must setup queue delegator for sending task with for example priority load balancer. To do so updated your Spring configuration with below beans configuration:

@Configuration
@ComponentScan({"com.jlupin.impl.microservice.samplenative"})
public class MicroserviceApplicationConfiguration {

    @Bean
    public JLupinLogger getJLupinLogger() {
         return JLupinSystemContainer.getInstance().getJLupinLogger();
    }

    @Bean
    public JLupinServiceRepository getJLupinServiceRepository() {
        return JLupinClientUtil.generateServiceRepository(5000, JLupinServiceRepositoryType.INNER_MICROSERVICE, null,
                                                          new JLupinServiceRepositoryConnectionToServerConfiguration(), getJLupinLogger());
    }

    @Bean("jlrmcDelegator")
    public JLupinDelegator getJLRMCDelegator() {
        JLupinLoadBalancer jLupinPriorityLoadBalancer = JLupinClientUtil.generateLoadBalancer(getJLupinServiceRepository(), 3, 5000,
                                                        JLupinClientUtil.JLupinLoadBalancerAlgorithmType.PRIORITY, getJLupinLogger());
        return JLupinClientUtil.generateLoadBalancerDelegator(PortType.JLRMC, jLupinPriorityLoadBalancer);
    }

    @Bean("queueDelegator")
    public JLupinDelegator getQueueDelegator() {
        JLupinLoadBalancer jLupinLocalhostLoadBalancer = JLupinClientUtil.generateLoadBalancer(getJLupinServiceRepository(), 3, 5000,
                                                         JLupinClientUtil.JLupinLoadBalancerAlgorithmType.PRIORITY, getJLupinLogger());
        return JLupinClientUtil.generateLoadBalancerDelegator(PortType.QUEUE, jLupinLocalhostLoadBalancer);
    }

}

Important here is that the service repository instance is shared between all load balancers.

Main server

Update your main.yml file to setup load balancers for queue protocol:

[...]
PROCESS_MANAGER:
  [...]
  LOAD_BALANCER_SETTINGS:
    [...]
    QUEUE_PROTOCOL_SETTINGS:
      ALGORITHM:
        type: priority
      PROPERTIES:
        changeServerIntervalInMillis: 5000
[...]

With this configuration load balancer will look for queue microservice on all peers but at first will try to use localhost.

Queue microservice

Update your configuration.yml file to setup load balancers for queue protocol:

[...]
ENTRY_POINTS:
  [...]
  QUEUE:
    [...]
    LOAD_BALANCER_SETTINGS:
      ALGORITHM:
        type: priority
      PROPERTIES:
        changeServerIntervalInMillis: 5000
        repeatsAmount: 3
[...]

Microservice with service called by queue

Update your configuration.yml file to setup load balancers for queue protocol:

[...]
ENTRY_POINTS:
  [...]
  QUEUE:
    [...]
    LOAD_BALANCER_SETTINGS:
      ALGORITHM:
        type: priority
      PROPERTIES:
        changeServerIntervalInMillis: 5000
        repeatsAmount: 3
[...]

Storage type configuration

To use disk queue implementation configure your queues.yml configuration file with storage class name as shown below:

[...]
    storageClassName: 'com.jlupin.impl.microservice.partofjlupin.asynchronous.storage.queue.impl.disk.JLupinDiskQueueStorageImpl'
[...]

Storage configuration

Remember to set up your storage configuration in storage.yml file:

STORAGE:
  #absoluteRootPath: 'c:\\storage'
  maxTasksAmountInSingleDirectory: 100
  howOftenCheckingSubdirectoryInMillis: 5000
  howOftenGenerateHealthCheckFileInMillis: 10000
  takeControlOfAnotherQueueInMillis: 60000
  howLongWaitToTakeControlOfOwnStorage: 60000
  howOftenCheckAnotherHealthCheckFileInMillis: 10000
  maxTimeToHoldNonUseDirectoriesInMilliseconds: 86400000

Description:

Parameter Description
#absoluteRootPath Path to root location for storing queues. By default it is platform/storage directory.
maxTasksAmountInSingleDirectory Maximum amount of tasks stored in a single directory.
howOftenCheckingSubdirectoryInMillis Time period (expressed in milliseconds) at which subdirectories will be checked for new tasks and switched.
howOftenGenerateHealthCheckFileInMillis Time period (expressed in milliseconds) at which queue will update it's healt check status.
takeControlOfAnotherQueueInMillis Minimum time (expressed in milliseconds) required to pass before taking controler over another queue which is not alive.
howLongWaitToTakeControlOfOwnStorage Time period (expressed in milliseconds) which queue will wait after setting it is alive before it will start processing it's own tasks.
howOftenCheckAnotherHealthCheckFileInMillis Time period (expressed in milliseconds) at which queue will check if other queues are alive.
maxTimeToHoldNonUseDirectoriesInMilliseconds Maximum alive time (expressed in milliseconds) for unused directories.

Shared storage options

It is up to you which shared storage option you will choose. Below are listed some of available solutions:
