Firewall¶

Recommendations¶

Recommended firewall solution is to use firewalld. But firewalld configuration can be easily understood and translated to other solutions like nftables or iptables.

Configuring Firewalld for Onteon¶

Non-SSL communication¶

Traffic and Firewall graph non-SSL

FirewallD on Onteon Control Center¶

7020 - available to ONMs

firewall-cmd         \
   --permanent      \
   --zone=public    \
   --add-rich-rule="rule family=\"ipv4\" source address=\"ONM_IP\" port protocol=\"tcp\" port=\"7020\" accept"

7020 - available to Onteon CLI

firewall-cmd         \
    --permanent      \
    --zone=public    \
    --add-rich-rule="rule family=\"ipv4\" source address=\"OCLI_IP\" port protocol=\"tcp\" port=\"7020\" accept"

SSL communication¶

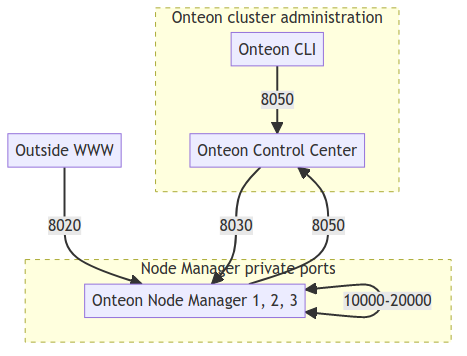

Traffic and Firewall graph SSL

FirewallD on Onteon Control Center¶

7019 - available to ONMs

firewall-cmd         \
   --permanent      \
   --zone=public    \
   --add-rich-rule="rule family=\"ipv4\" source address=\"ONM_IP\" port protocol=\"tcp\" port=\"7019\" accept"

7019 - available to Onteon CLI

firewall-cmd         \
    --permanent      \
    --zone=public    \
    --add-rich-rule="rule family=\"ipv4\" source address=\"OCLI_IP\" port protocol=\"tcp\" port=\"7019\" accept"

FirewallD on Onteon Node Manager¶

8020 - available to WWW or selected IP addresses

firewall-cmd         \
    --permanent      \
    --zone=public    \
    --add-rich-rule="rule family=\"ipv4\" source address=\"PRIVATE_IP\" port protocol=\"tcp\" port=\"8020\" accept"

8030 - available to OCC

firewall-cmd         \
    --permanent      \
    --zone=public    \
    --add-rich-rule="rule family=\"ipv4\" source address=\"OCC_IP\" port protocol=\"tcp\" port=\"8030\" accept"

range 10000-20000 - available between ONMs

firewall-cmd         \
    --permanent      \
    --zone=public    \
    --add-rich-rule="rule family=\"ipv4\" source address=\"OTHER_ONM\" port protocol=\"tcp\" port=\"10000-20000\" accept"
